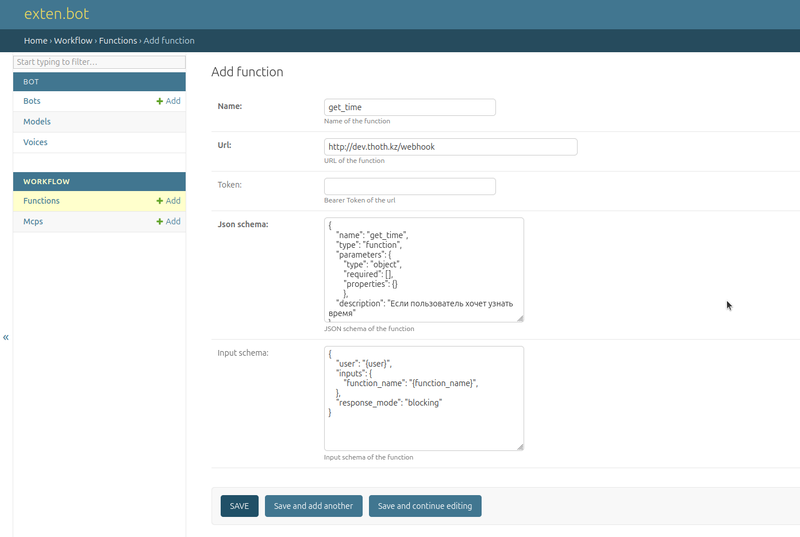

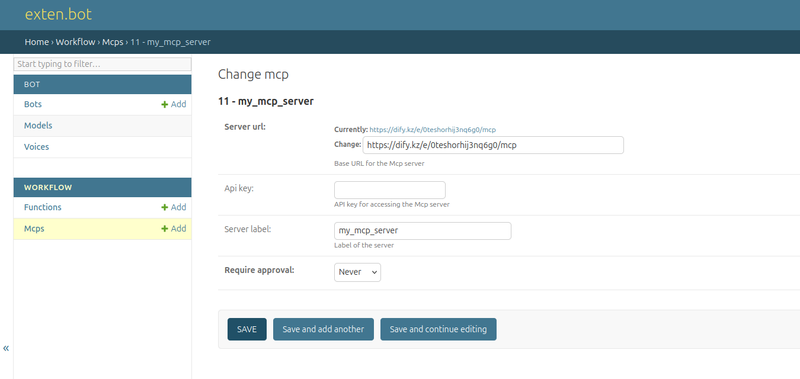

exten.bot is a Django-based web interface for creating VoIP voice bots that can be connected to any software or hardware PBX supporting SIP. The system is built on an OpenSIPS server and the opensips-ai-voice-connector module, using the OpenAI real-time API for artificial intelligence. The platform supports dify.ai workflows, allowing the design of bot logic and integration with other systems via function calls.

Creating a Voice Bot with exten.bot

To create a simple voice consultant bot based on a text instruction, go to Settings - Bots and create a new bot.

Bot field descriptions:

• Domain - exten.bot
• Username and Password - automatically generated SIP account credentials for connecting to your PBX
• Token - OpenAI token
• Model - AI model on which the voice bot will operate
• Voice - voice for the voice bot's speech synthesis
• Instruction - text instruction guiding the voice bot's behavior
• Welcome Message - the message the bot will speak upon connection
• Transfer URI - SIP address to which the voice bot will transfer calls upon subscriber request. Example: sip:100@10.8.0.1 (will work if the bot is connected to the same PBX)

SIP connection parameters

• Server address: exten.bot
• Port: 5060 UDP
• RTP port range: 10000:20000 UDP
• Supported codecs: G711 (μ-law and A-law)
• Contact field: Username received when creating the bot
• Maximum number of contacts: 5
• SIP URI of voice bot: openai@exten.bot or 70000000000@exten.bot

Connecting the Voice Bot to the FreePBX

To connect the voice bot to the PBX, use the obtained username and password, and the domain exten.bot for registration.

The example shows the PJSIP trunk settings in FreePBX.

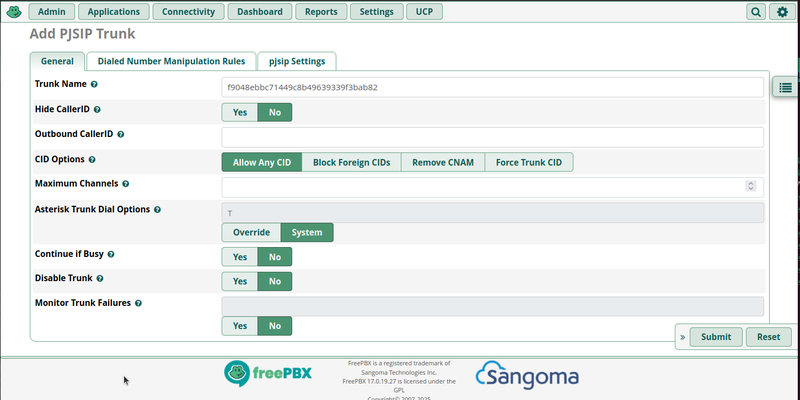

Add PJSIP Trunk - General - Trunk Name = <username>

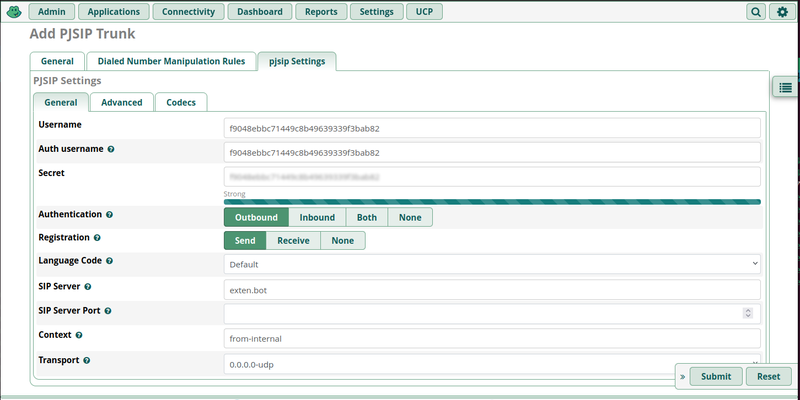

-- pjsip Settings - General -

• Username and Auth username = <username>
• Secret = <password>
• SIP Server = exten.bot
• Context = from-internal

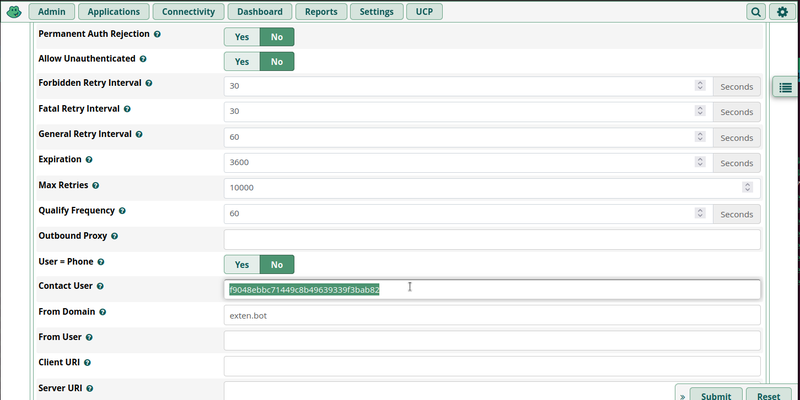

PJSIP Settings - Advanced

• Contact User = <username>
• From Domain = exten.bot
• From User = <username>

Connecting a Voice Bot to FusionPBX

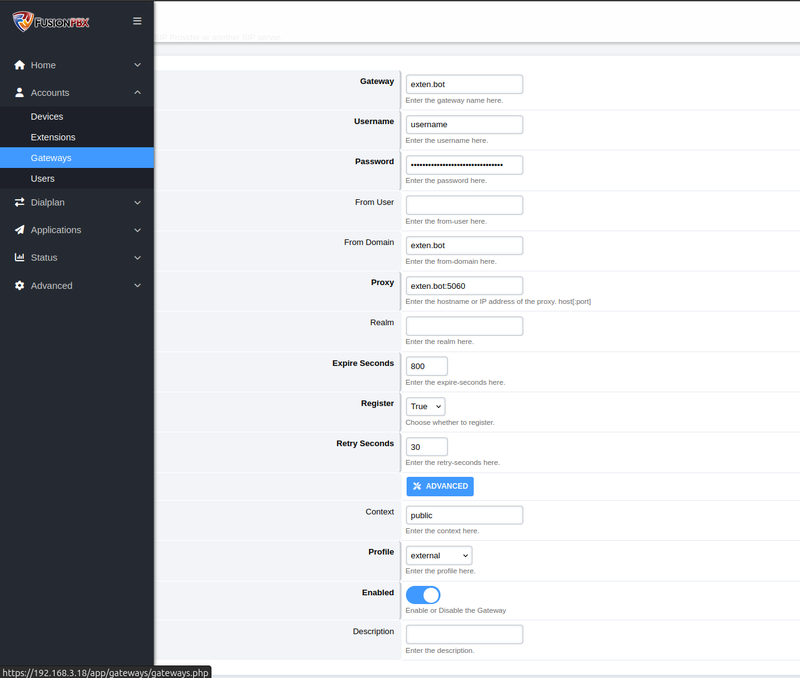

1. Accounts > Gateways > Add

• Gateway: exten.bot
• Username: <username>
• Password: <password>
• From Domain: exten.bot
• Proxy: exten.bot:5060
• Profile: external

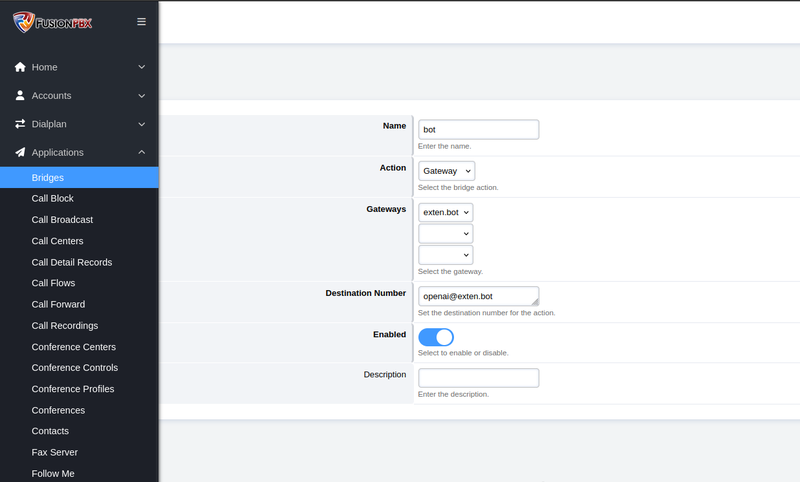

2. Applications > Bridges > Add

• Name: bot
• Action: Gateway
• Gateways: exten.bot
• Destination Number: openai@exten.bot

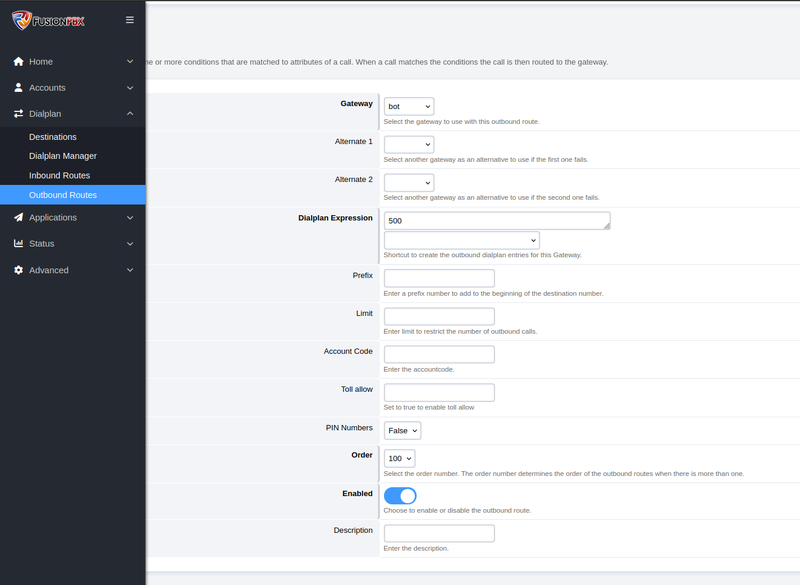

3. Dialplan > Outbound Routes > Add

• Gateway: Bridges > bot
• Dialplan Expression: 500 (for example)

Then call 500 ext to connect to the OpenAI voice bot
